Large booths - walled booths
Montex Kolín
painting shop of truck superstructures
more information >Montex Kolín

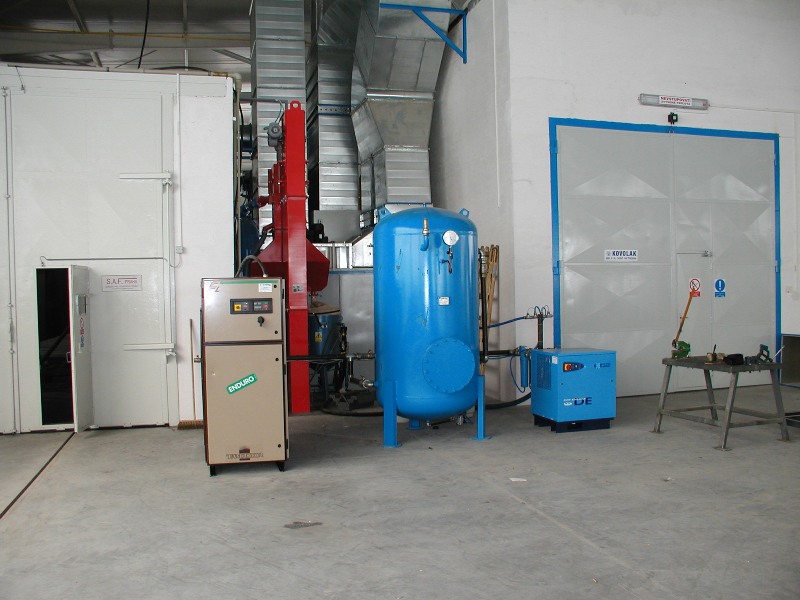

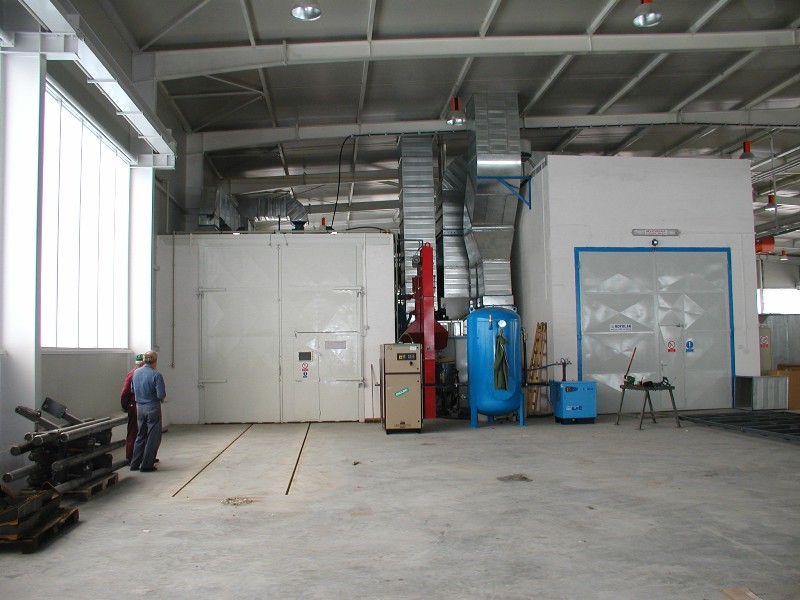

Walled blasting booth, dimensions LxWxH = 15x5x4.4m with return transport of abrasive material, walled spraying booth, dimensions LxWxH = 15x5x5.5m, with dry separation and combined regime spraying-drying, natural gas thermo-ventilation units, metal sheet spraying boot, dimensions LxWxH = 9.2x4.5x3.6m with dry separation and combined regime spraying-drying, natural gas thermo-ventilation unit, exhausting units on both booths with emission filters with activated carbon, fresh air supply and exhausting ducts, electric installation.
JMB Piesok
painting shop of parts of building machines
more information >JMB Piesok

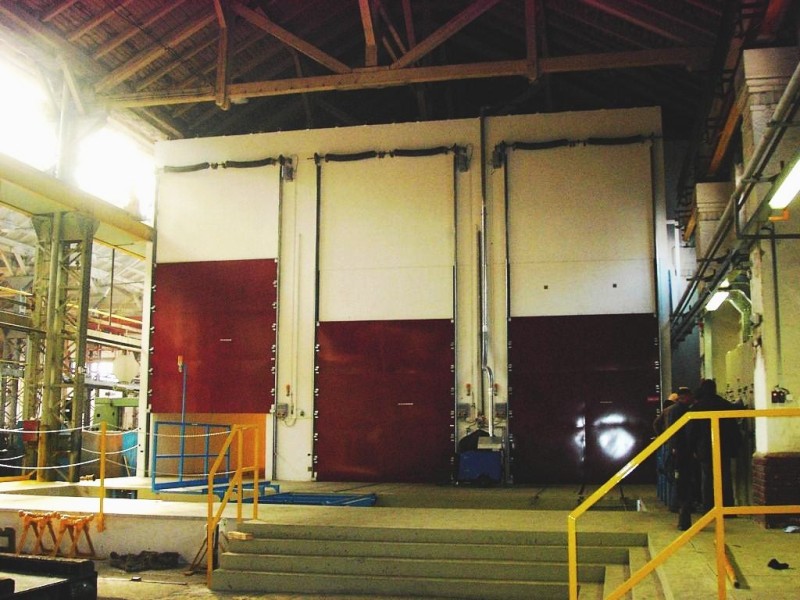

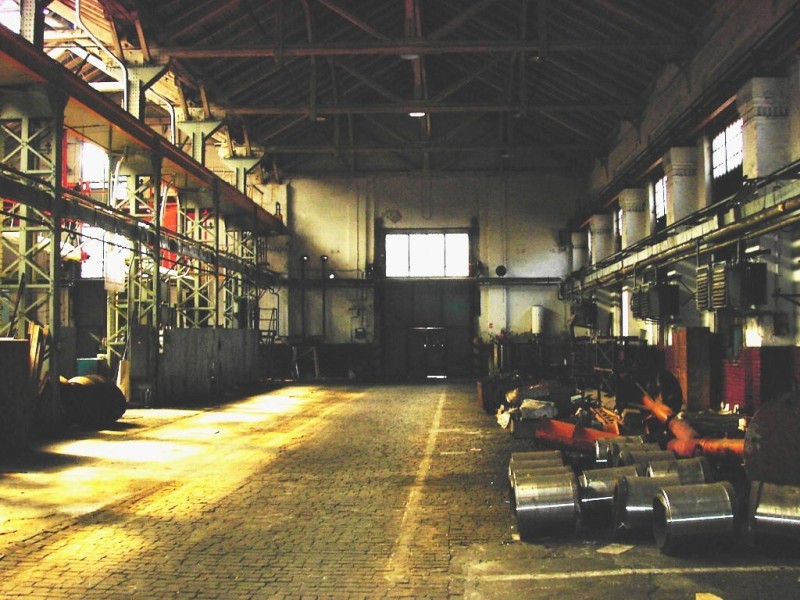

Walled manual degreasing booth, dimensions LxWxH = 10x5x4.5 m, walled spraying booth, dimensions LxWxH = 9.5x4.8x4.5m, with a dry separation system, walled drying booth, dimensions LxWxH = 9x3.5x3.5m, exhausted workplace of puttying, floor conveyor including a displacement device, air-conditioning equipment, electric installation.
PROGRES OK Přerov
painting shop of steel structures
more information >PROGRES OK Přerov

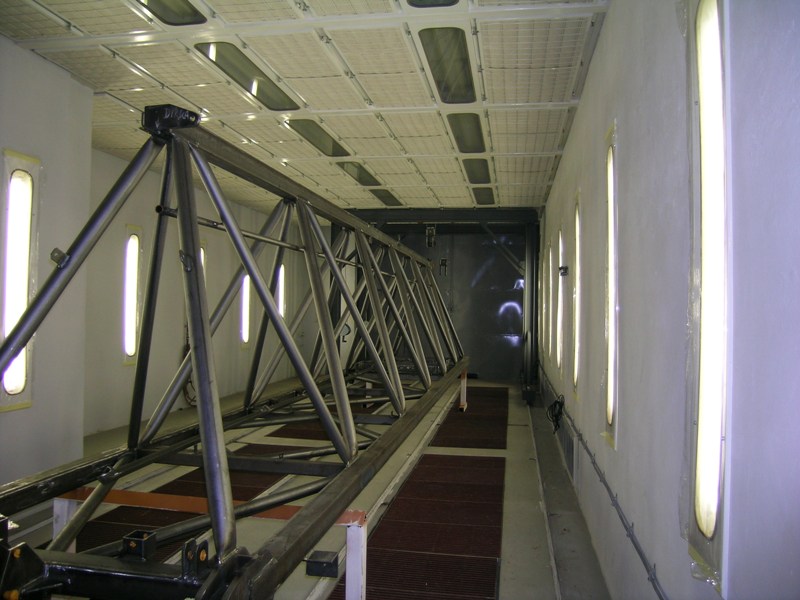

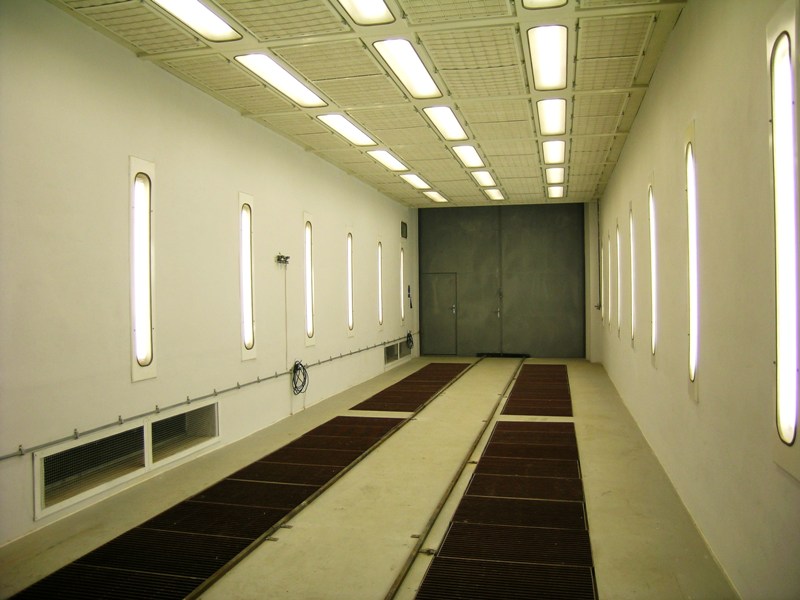

Two walled combined spraying booths, dimensions LxWxH = 14.7x4.4(5.7)x3.5m for surface finishing of steel structures. Heating of air by natural gas, drying temperature 80°C. The booths are equipped with dry floor filtration systems. Manipulation with products using the loading carriages.
SCHÄFERMENK Dýšina
painting shop of welded pieces
more information >SCHÄFERMENK Dýšina

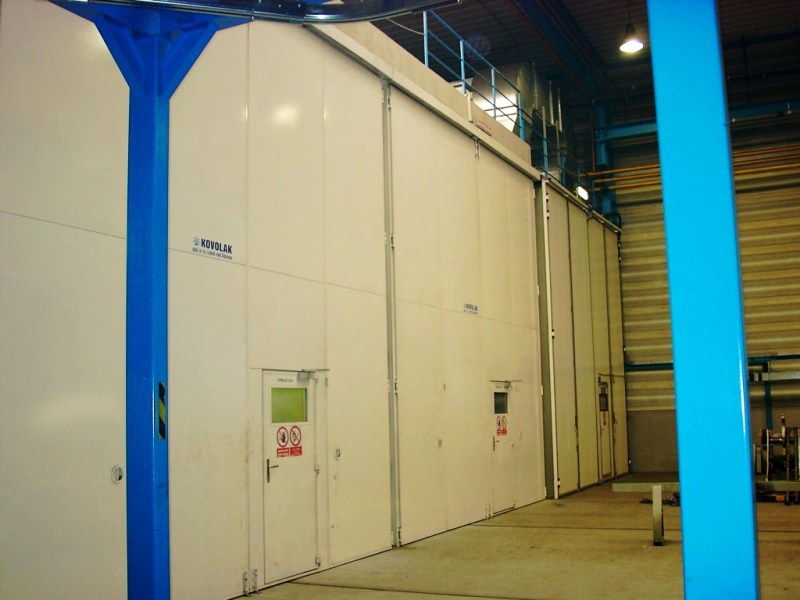

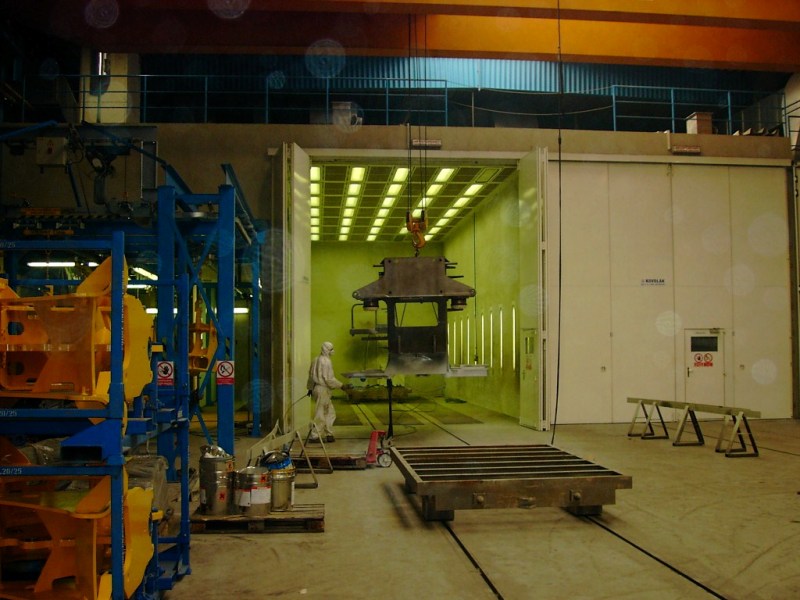

Two walled combined spraying booths, dimensions LxWxH=14x5.6x5.7m, air-conditioning machine room located on roof of the booth, complete fresh air supply and exhausting ducts including rotary heat recovery devices, exhausting units with emission filters, electric installation.
Heating of air by natural gas, drying temperature 80°C. Walled blasting booth, dimensions LxWxH = 14x5.8x5.7m including complete technology. Line for surface finishing, consisting of a floor spraying booth, evaporating room, metal sheet insulated drier heated by natural gas, dimensions LxWxH = 6x2x3.5m, manual suspended conveyor. Complete air-conditioning ducts and electric installation.
The manual overhead conveyor includes two electric lifting/lowering sections for loading of products and manipulation with products during application of paints.
PKD Dačice
painting shop of steel structures
more information >PKD Dačice

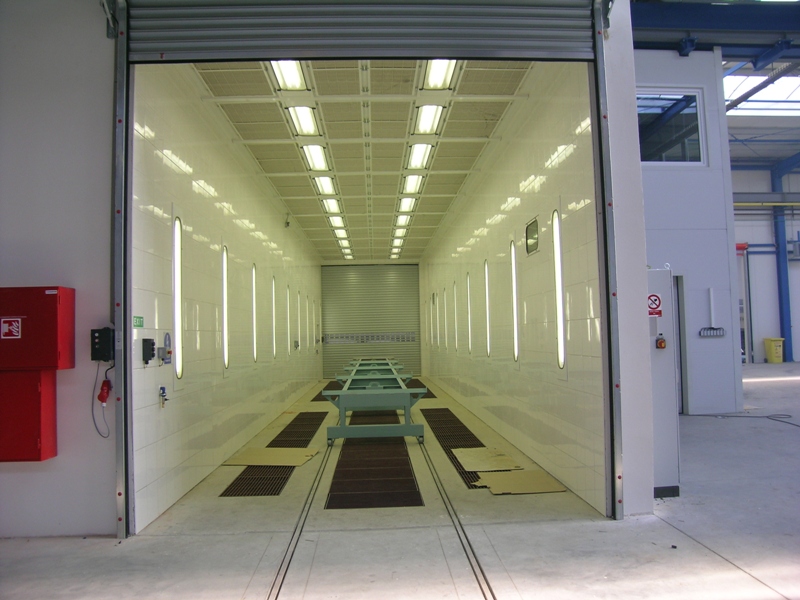

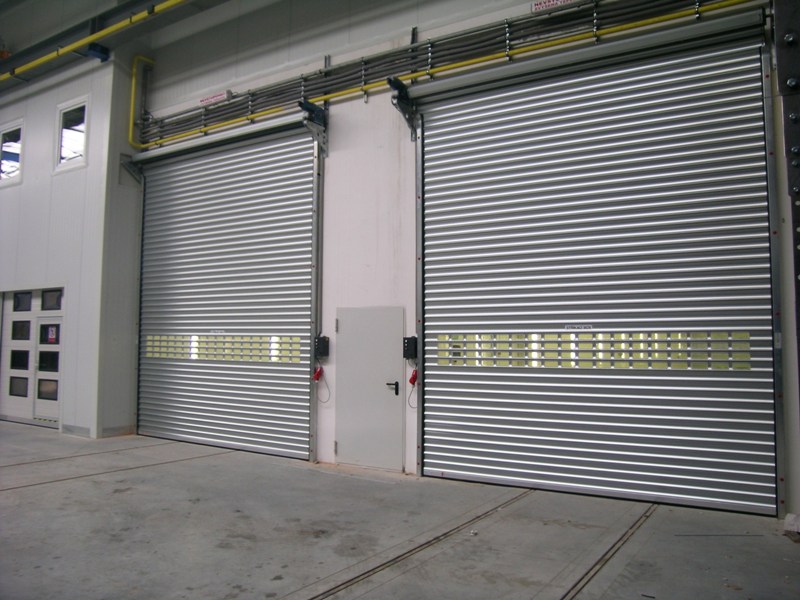

Two walled spraying booths with a dry separation system and combined regime spraying-drying, dimensions LxWxH = 18,45x3,8x4 m.
Two thermo-ventilation natural gas units installed above the booths, with switching to two sections. Air-conditioning ducts including a rotary heat recovery device and utilisation of waste heat from the co-generation unit. Manipulation with products using rail carriages.
KARS Vrdy
painting shop of buses
more information >KARS Vrdy

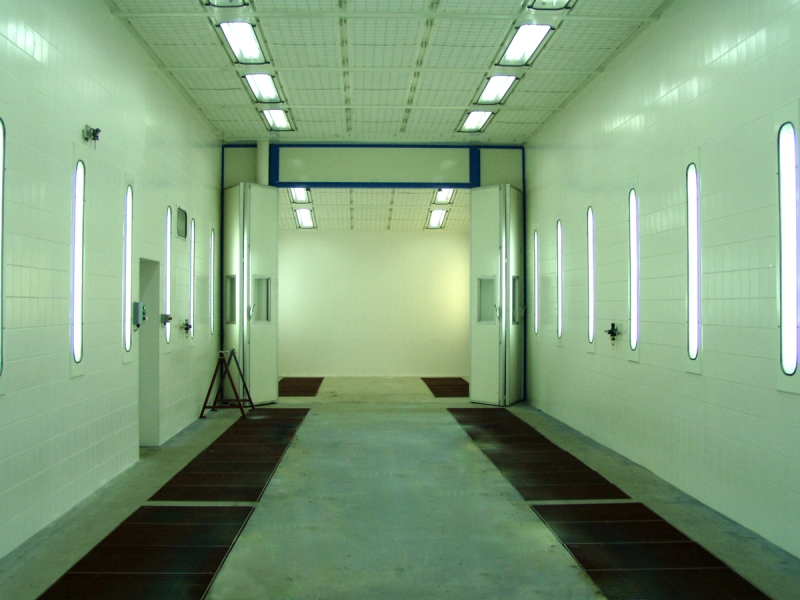

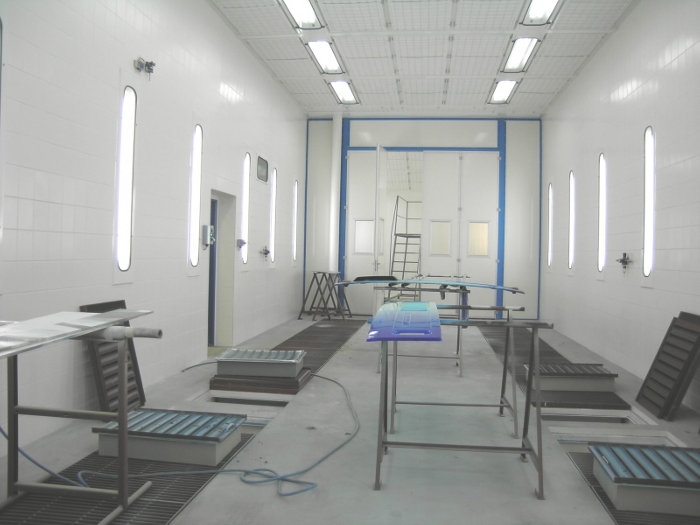

Walled spraying booth with dry separation system and combined regime spraying-drying, divided into two sections, dimensions LxWxH = 15.2x5x4.2m and 5.75x5x4.2m. Thermo-ventilation natural gas unit with switching to 3 sections, installed next to the booth, air-conditioning ducts, electric installation, distribution of compressed air.
Posad -Tech Montage Valašské Meziříčí
painting shop of steel structure
more information >Posad -Tech Montage Valašské Meziříčí

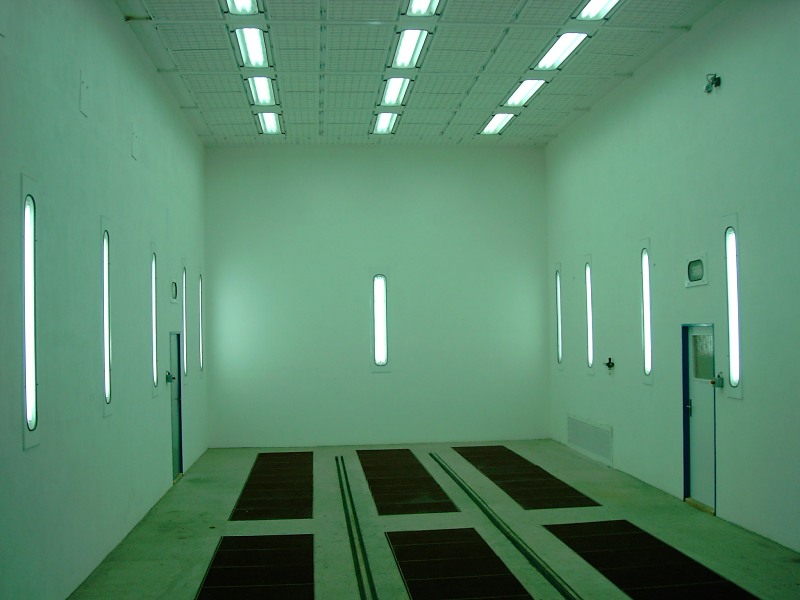

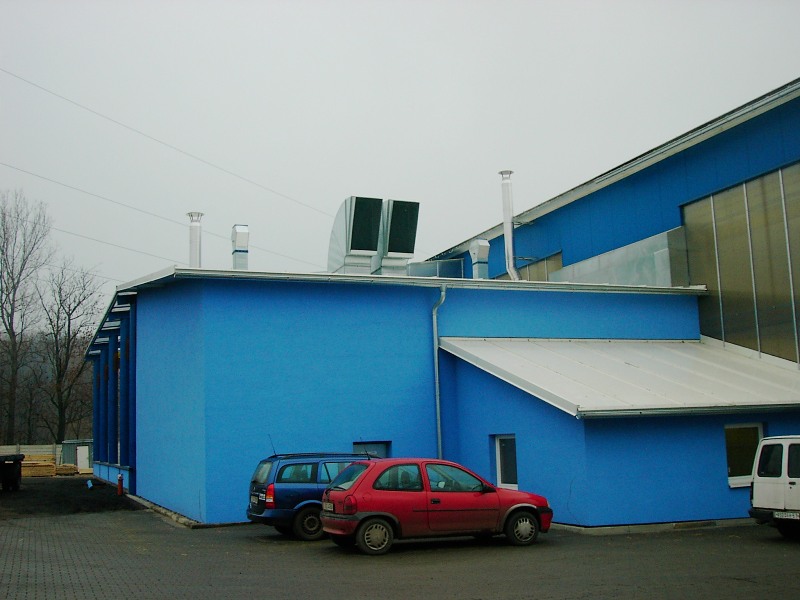

Walled spraying booth, dimensions LxWxH =13x6x5m, with a dry separation system with combined regime spraying-drying, handled by two air-condition machine rooms, natural gas thermo-ventilation units, fresh air supply and exhaustion ducts with rotary heat recovery devices, electric installation.
Svitstroj Svit
painting shop of steel structures
more information >Svitstroj Svit

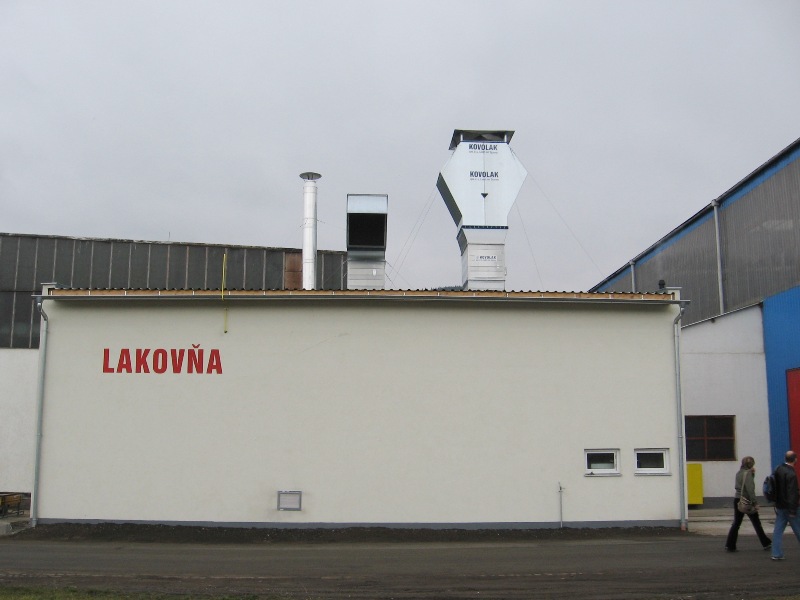

Walled spraying booth, dimensions (LxWxH)=15x6x4,5m, with a dry separation system with combined regime spraying-drying, handled by one air-condition machine room with switching to two halves, fresh air supply and exhaustion ducts with a rotary heat recovery device, electric installation.
Škoda JS Plzeň
painting shop of large-volume vessels
more information >Škoda JS Plzeň

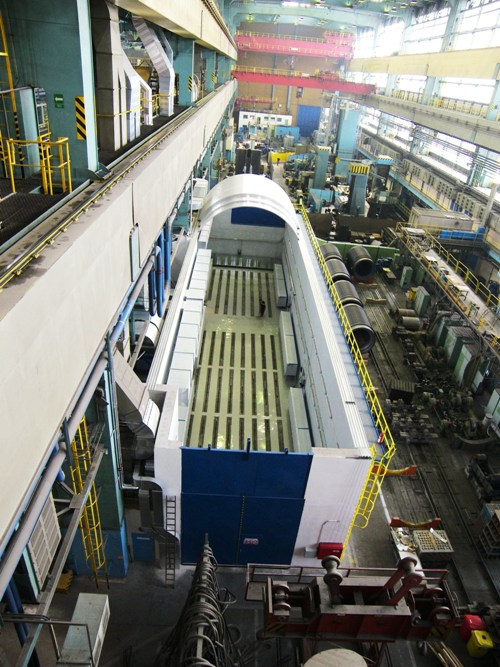

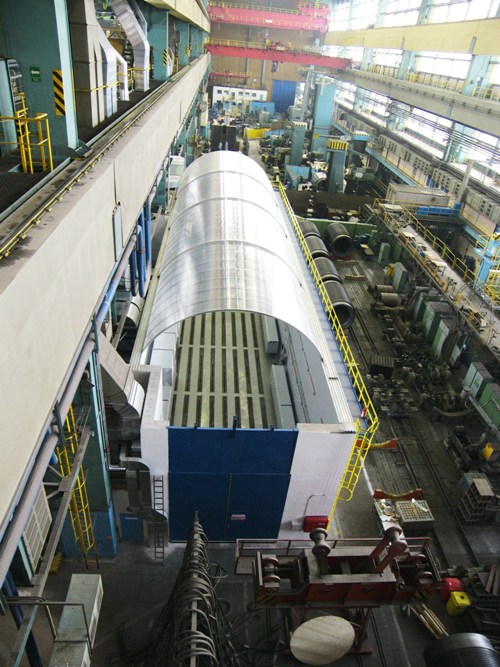

Walled spraying booth with open ceiling for loading of products by a crane, dimensions LxWxH = 35.3x8.7x7.25m, with a dry separation system, installed in ducts along the side walls, handled by two natural gas air-condition machine rooms, emission filters with activated carbon, exhaustion of treatment of paints, fresh air supply and exhaustion ducts with rotary heat recovery devices, electric installation.
