Painting lines

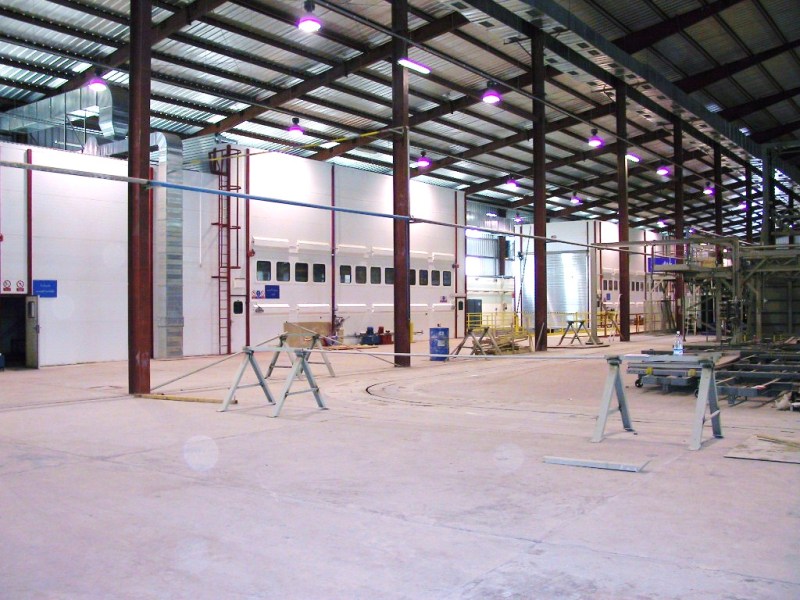

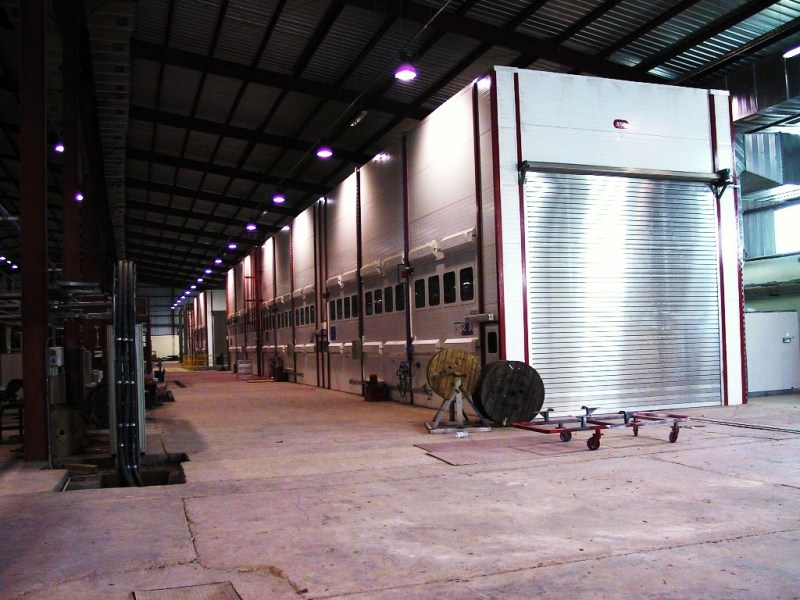

The boxes are equipped with dry filters, electric heating of air, mobile lifting platforms for sprayers and lifting platforms for lifting of bus bodies. The delivery also included electric installation for civil works, primary systems for distribution of media and air-condition of the hall.

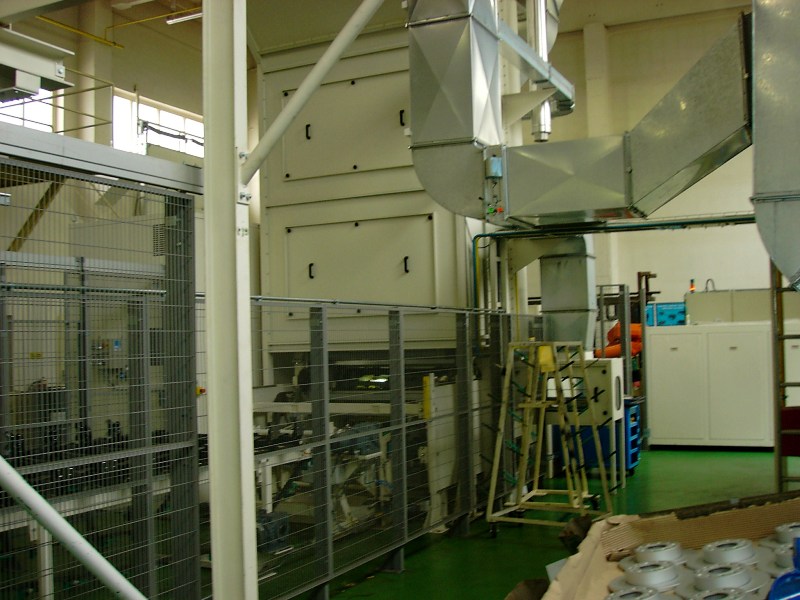

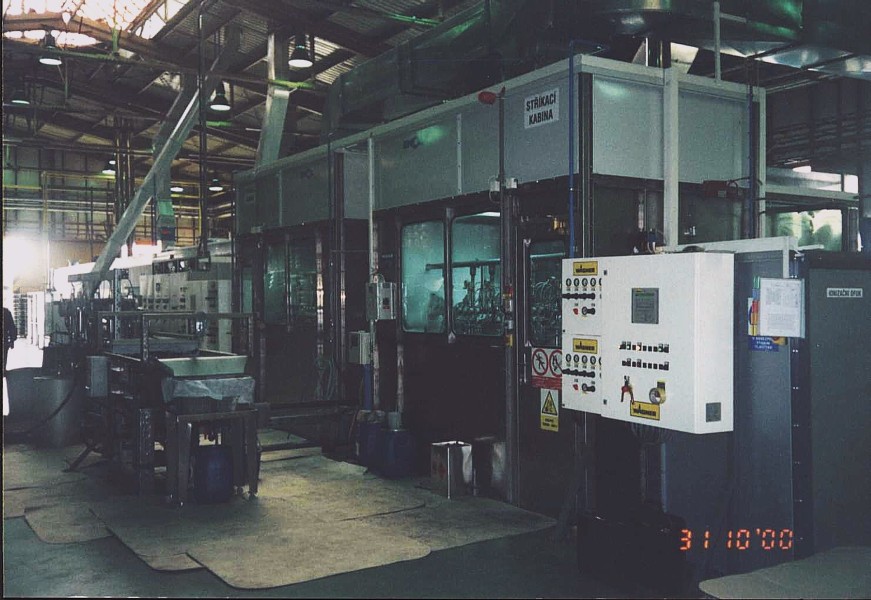

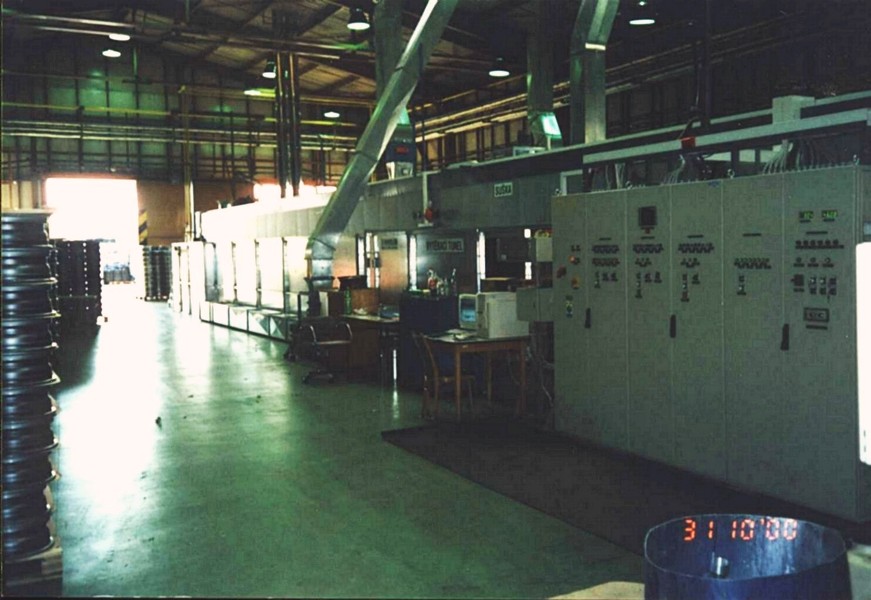

Complete line for surface finishing of wheel rims, operated using a raised floor conveyor, assembled of a cabin of ionisation blasting, spraying booths with water filter for automatic spraying of products, evaporating tunnel, drier, firing oven and cooling tunnel.

Supply gas heating unit with recuperation of waste heat. Flotation unit for purification of water in water tanks of spray booths.

Complete line operated using an overhead conveyor, consisting of a mobile degreasing machine, drying oven after degreasing, 3 spraying booths with dry filter, w = 1600 mm, 3 evaporating tunnels and drying oven.

Complete supply fresh air ducts with natural gas thermo-ventilation unit and rotary heat recovery device. Complete exhausting system including a catalyst incinerator.

Preheating workplace, automatic waxing box, gas drier for temperature 80°C, cooling tunnel, gas supply unit, chain conveyor, air ducting and electric installation.

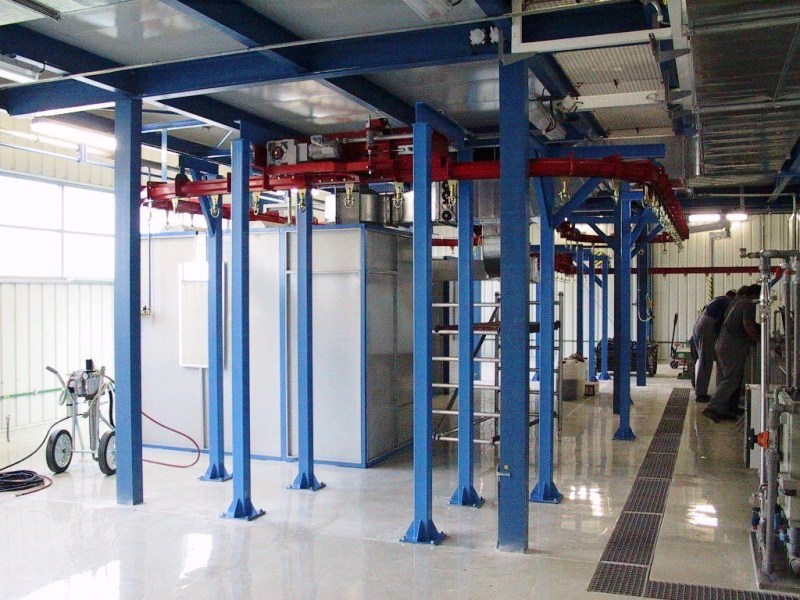

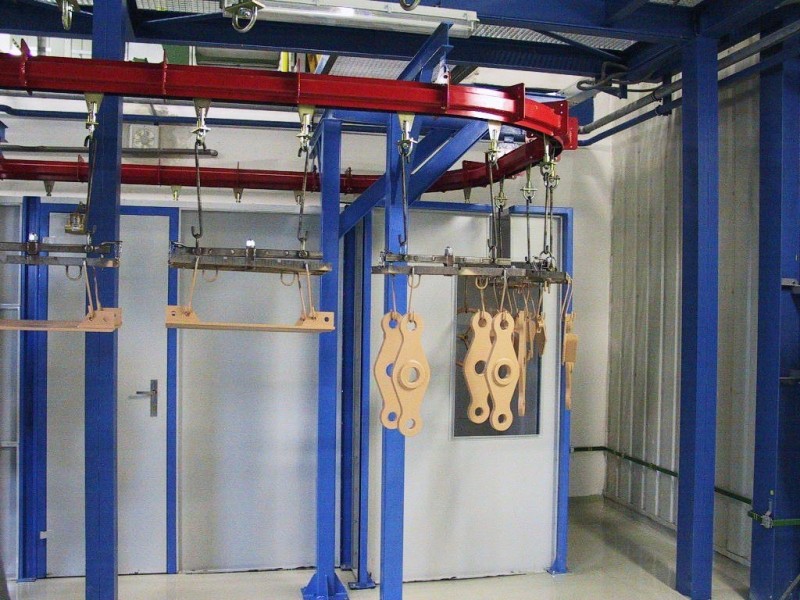

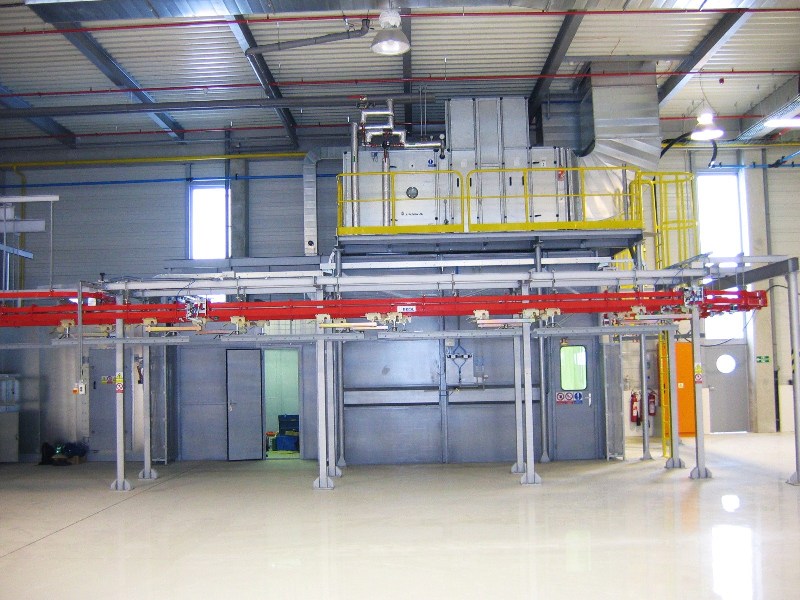

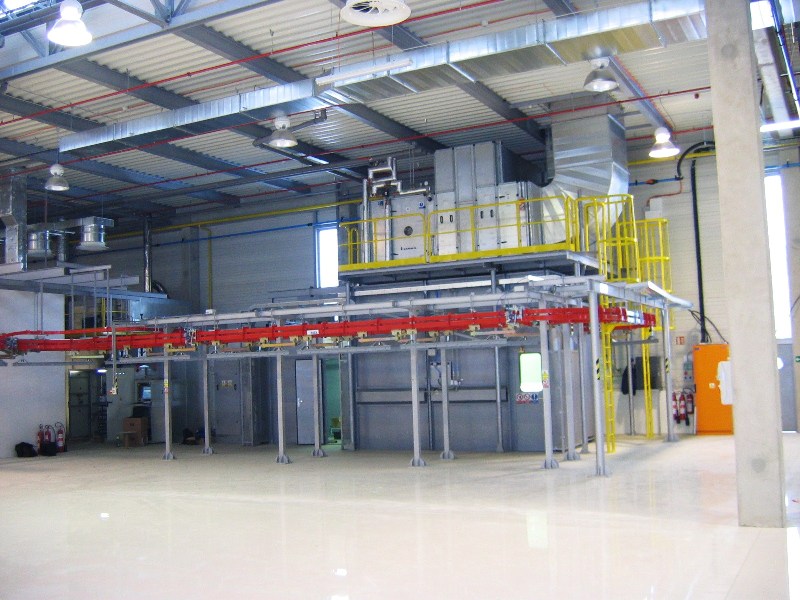

Metal sheet spraying booth, dimensions LxWxH = 4.6x3.5x3m and evaporating tunnel, dimensions LxWxH = 3x2.6x3m in a line arrangement. The booth and evaporating tunnel are equipped with sliding gate with servo-drive. Products are manipulated using a double-path overhead conveyor.

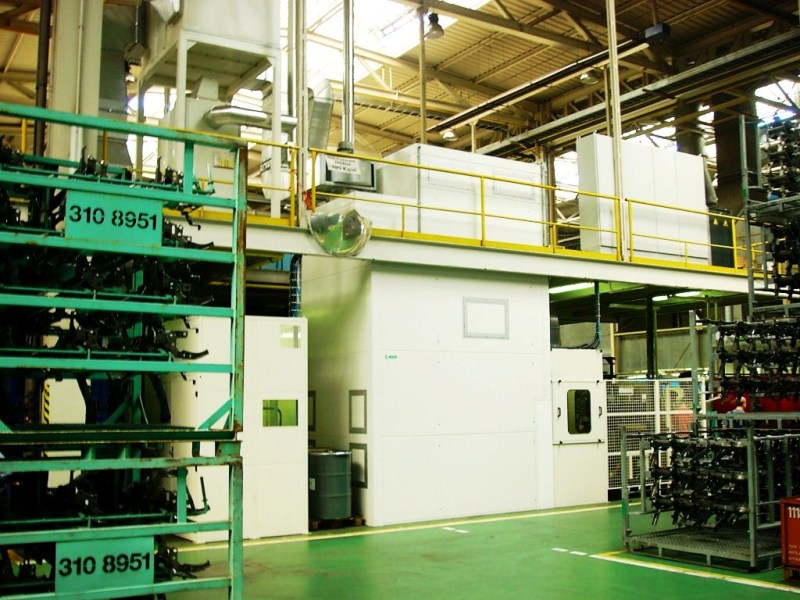

Machine room for air-conditioning is located on a steel structure above the spraying booth. Hot water heating of air with recuperation of waste heat. Air ducts, electric installation.

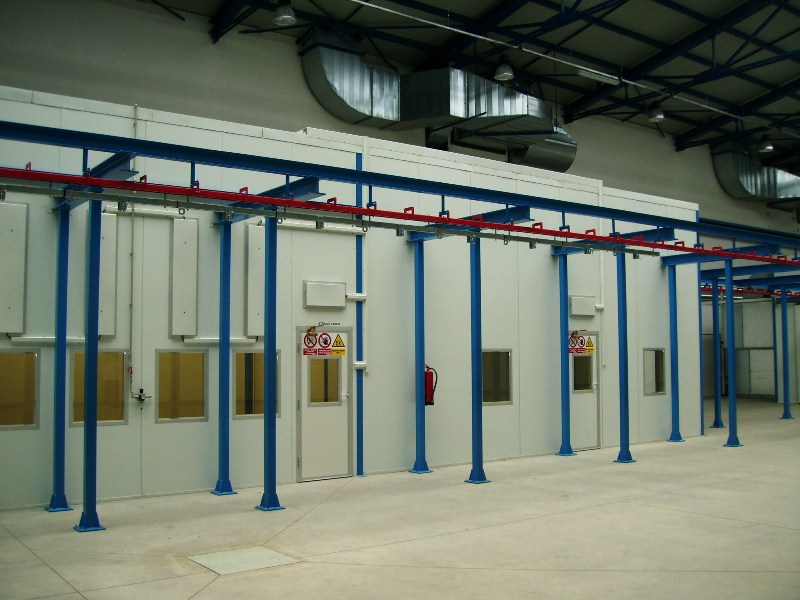

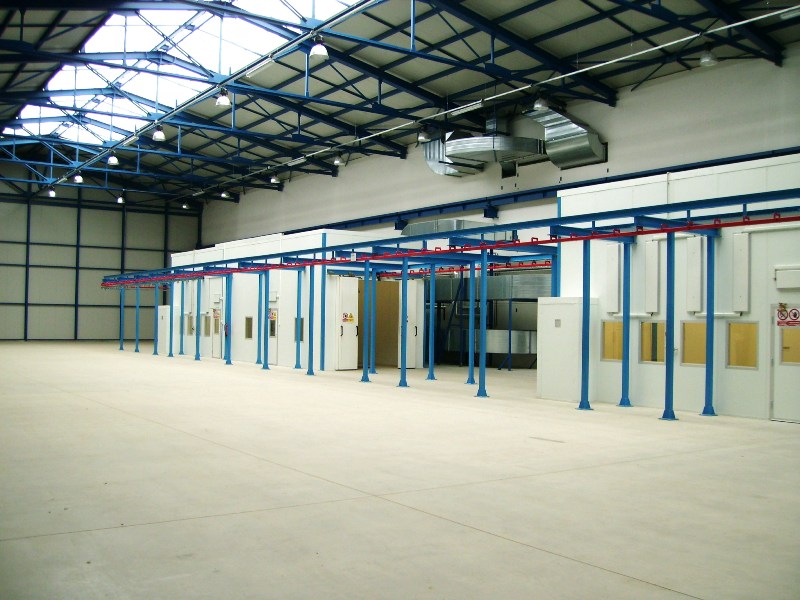

Spraying booth for primer, assembled of insulated panels, with dry filter, dimensions LxWxH = 6x4x3.5m, booth for drying of the priming coat, dimensions LxWxH = 8x4x3.5m.

Spray booth for top paints, assembled of layered panels, with dry filter, dimensions LxWxH = 6x4x3.5m, volatilisation booth, dimensions LxWxH = 8x4x3.5m, booth for drying of top coats (70°C, heated by hot water), dimensions LxWxH = 12x4x3.5m, manual overhead conveyor with carrying capacity 800kg, air supply hot water units with recuperation and humidification of supplied air, air ducts, electric installation.

Floor spraying booth SBPE 02 with dry filter, with a passage for a conveyor, metal sheet insulated box, dimensions LxWxH = 6.5x2x2.5m with two air-condition regimes of evaporating – drying at 60°C (drying heated by a gas thermo-ventilation unit), manual overhead conveyor with 50 carriages, air supply thermo-ventilation unit heated with gas.

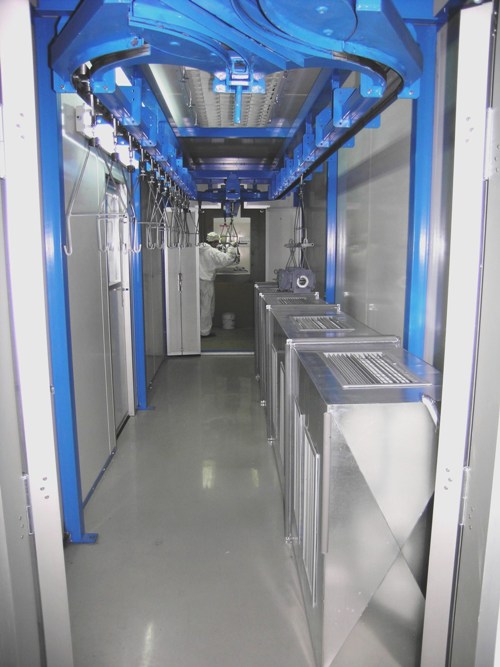

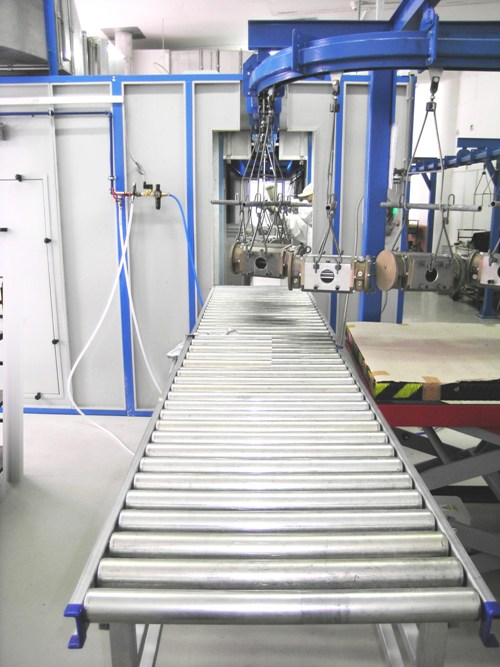

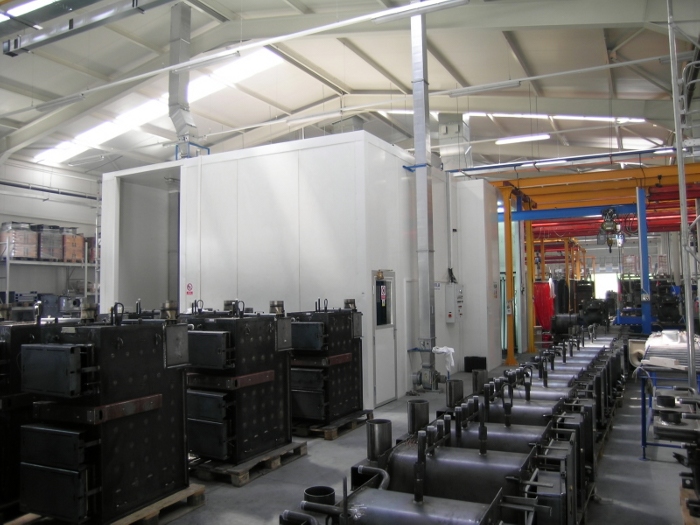

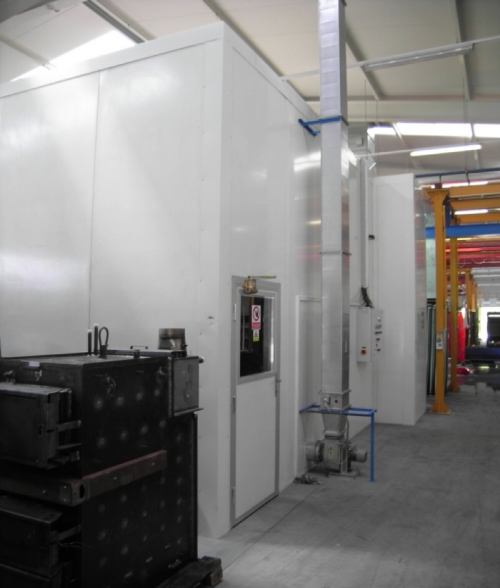

Line for surface finishing of boiler bodies consists of a spraying booth with dry filter, dimensions LxWxH = 4x4.3x4m, metal sheet insulated dryer heated by natural gas with dimensions LxWxH = 8.9x2.9x4m, overhead conveyor with an electric hoist, driven roller path, metal sheet insulated box for preparation of paints, dimensions LxWxH = 4.5x3.5x4m, air supply thermo-ventilation unit, complete air ducting and electric installation.
